Nuda

Stained-glass windows

Know it

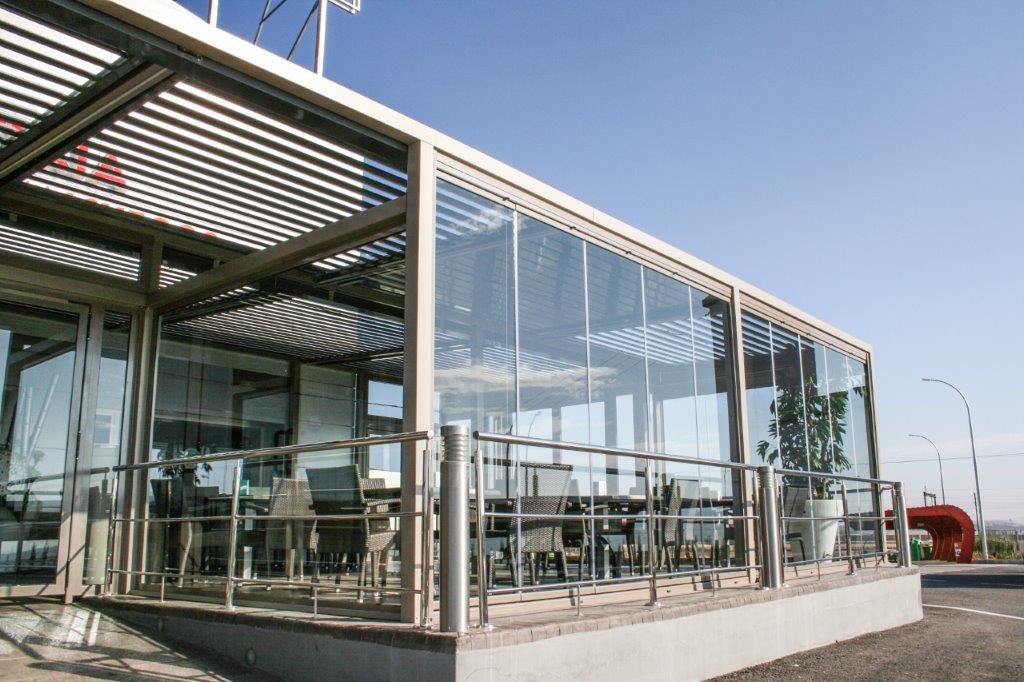

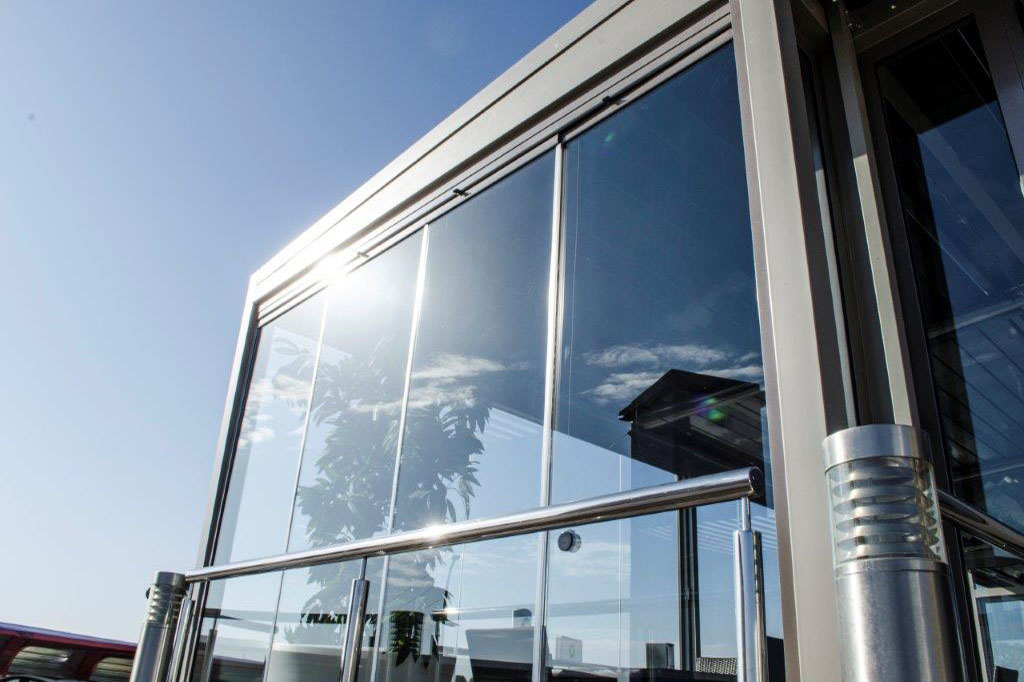

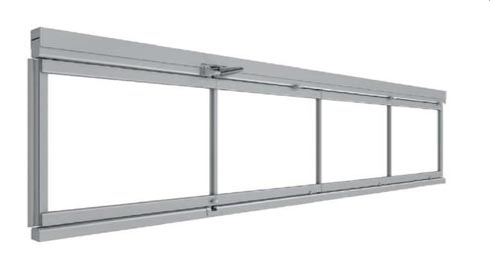

Folding window with glass panels, without vertical profiles. The main objective of Nuda is to generate new spaces protected from the elements, without breaking the aesthetics of the environment, through a quick, simple installation, easy to maintain and clean.

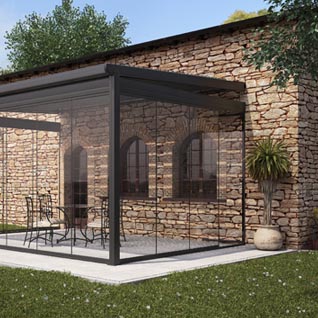

The use of folding and folding glass is ideal for optimizing spaces on balconies, terraces, gardens and restaurants, increasing the feeling of space, using natural light. Ideal for closing open environments not used in winter, solves problems of environmental noise with a reduction of 15/17 db thanks to the use of high quality materials.

Why choose TOMEI

Aesthetic zero impact

Thermal abatement.

Noise abatement.

Generate new spaces.

Practicality of use.

Energy saving.

Protects from atmospheric events.

CE UNI - EN14351-1 mark.

Fully recyclable materials.

Ease of cleaning

TECHNICAL CHARACTERISTICS

Air permeability

(according to UNI-EN 12207: 2000)

Slider Tomei glass 10mm Class 1
Resistance to wind force Slider Tomei glass 10mm 1100 Pa

Resistance to opening and closing cycles

(according to UNI-EN 12207: 2000)

Class 2 (10000 cycles)

Frame heat transfer coefficient

(according to UNI-EN ISO 10077-2: 2012)

UPPER FRAME = 6.0 W / m2K
LOWER FRAME = 6.2 W / m2K
RECESSED LOWER FRAME = 4.3 W / m2K

Thermal transmission coefficient with 3 doors

(according to UNI-EN ISO 10077-2: 2012)

Glass 10mm 5.5W / m2K
(lower frame recessed)
5.5W / m2K
(standard lower frame)
  • MATERIALS

    • Profiles: Aluminum
    • Bearing supports: Zamak
    • Plates: Stainless steel
    • Screws: Stainless steel

Donwload installation manual

Donwload PDF
